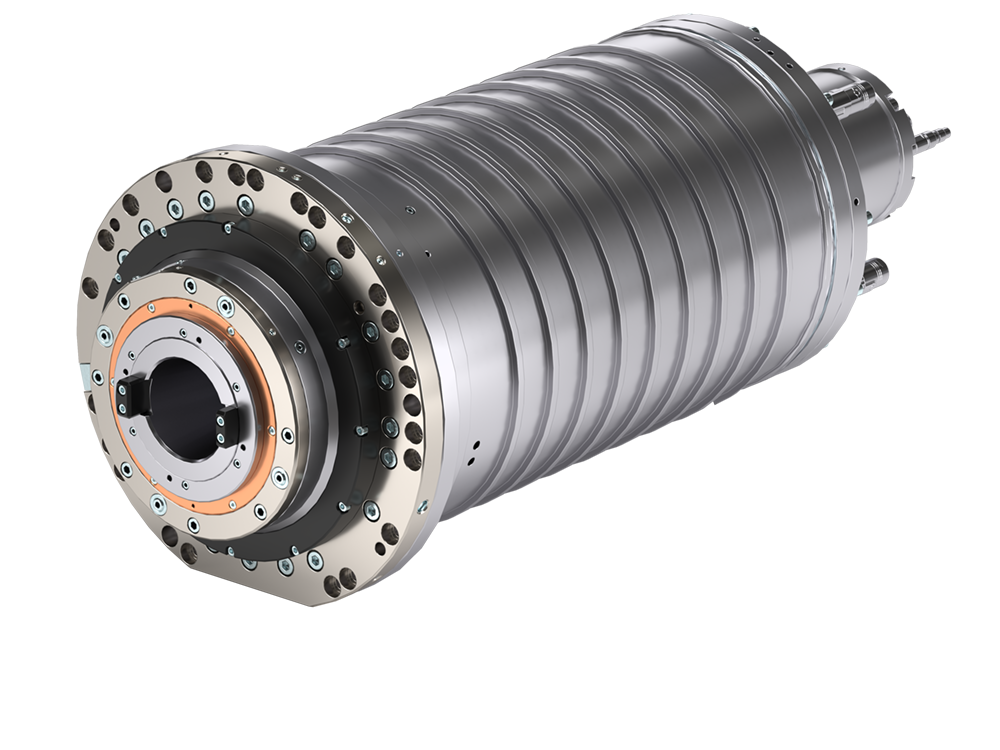

ES1040
Technical sheet
ES1040 - 48kW | ES1040 - 48kW HS | |
Body diameter [mm] | Ø270 | Ø270 |
Max speed [rpm] (grease / air-oil) | 8.000 / 15.000 | 8.000 / 15.000 |
Motor type | Asynchronous | Asynchronous |
Torque S1/S6 (40%) [Nm] | 305 / 450 | 305 / 445 |
Power S1/S6 (40%) [kW] | 48 / 71 | 48 / 70 |
Tool interface | HSK T100 / SK50 | HSK T100 / SK50 Big + |
Cooling | Liquid | Liquid |
Bearings lubrication | Grease / Air Oil | Grease / Air Oil |
Weight [kg] | 220 | 220 |
Coolant through shaft | Yes | Yes |
Vibration sensor | Yes | Yes |
Elongation sensor | Yes | Yes |
Shaft clamping | Yes | Yes |
Bearing preload function | Yes | Yes |
Shaft kit | Yes | Yes |
Cooling housing | Yes (Ø310) | Yes (Ø310) |
